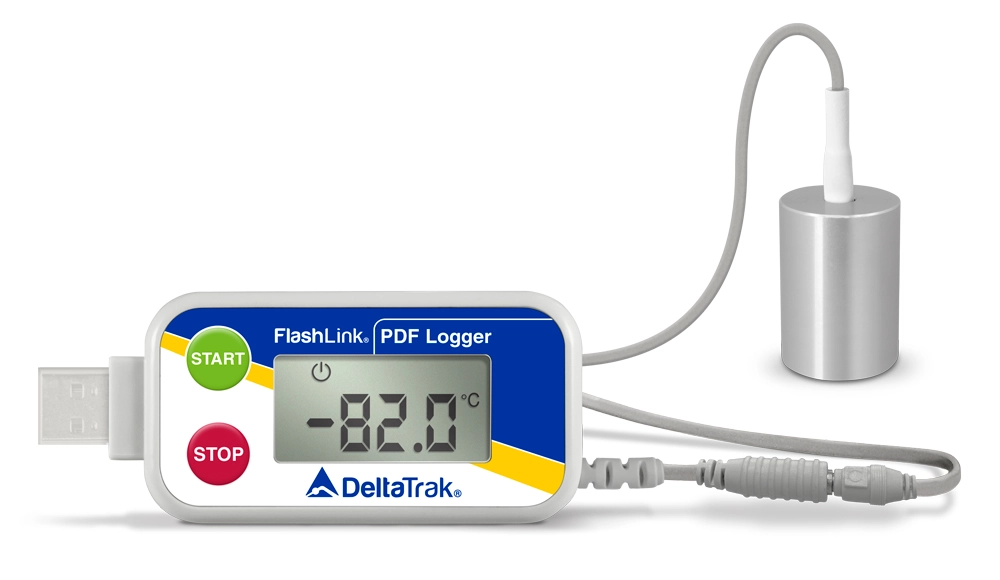

FlashLink® Certified Vaccine ULT PDF Data Logger with External Aluminum Sensor
Model: 40571
FEATURES
- Monitorea vacunas a temperaturas ultra bajas hasta -82°C
- Ideal para unidades de almacenamiento ULT con vacunas y biológicos
- Compatible con las directrices del CDC
- También se puede utilizar en congeladores estándar y unidades de almacenamiento refrigeradas
- Software compatible con la norma 21 CFR Parte 11
- Sensor externo de un solo canal
- El sensor con amortiguación de aluminio emula los productos y previene falsas alarmas
- Genera automáticamente informes PDF, CSV y registros diarios
- Alarmas audibles y/o visuales
- Indicador de batería baja en la pantalla LCD
- Cable de desconexión rápida para descargar el registrador
- Desplazamiento por los datos registrados en la pantalla LCD
APPLICATIONS
Hospitales, laboratorios, farmacias, supermercados, productos lácteos, vitrinas de refrigeración, refrigeradores y congeladores.
| Característica | Especificación |
|---|---|
| Rango de medición del sensor | -82°C a 45°C (-115.6°F a 113°F) |
| Rango de funcionamiento del registrador | -20°C a 50°C (-4.0°F a 122°F) |
| Resolución de temperatura | 0.1°F/°C |
| Precisión dentro del rango de funcionamiento normal | ±0.5°C de -82°C a 45°C (±1.0°F de -115.6°F a 113°F) |
| Capacidad de datos | 32.496 puntos de datos |
| Tiempo de descarga de datos | 5 segundos típico para 3823 puntos |
| Múltiples niveles de alarma | Niveles alto y bajo, y niveles extremadamente alto y bajo, visualizados en la pantalla LCD, con zumbador audible |
| Batería | Dos baterías de litio AAA, indicador de porcentaje de batería restante en la pantalla LCD |
| Dimensiones del registrador (cuerpo) | 40 mm x 93 mm x 24 mm (1.575 pulg x 3.66 pulg x 0.94 pulg) |
| Carcasa | Plástico ABS |
| Sensor externo | Sensor de aluminio de 24,4 mm (0,96 pulg) de diámetro x 32 mm (1,26 pulg) de alto, cable de PTFE de 3 m (9,8 pies) con conector estéreo |
| Peso | 63,5 gramos (2,24 oz) (solo registrador) |
| Calibración | Certificado de calibración ISO 17025 (A2LA) de 2 años, certificado de calibración NIST de 1 año y certificado de cumplimiento del fabricante disponibles |
| Certificación | Marcado CE, trazable a NIST, RoHS, WEEE |
| Pantalla | LCD, alarma LED roja |
| Índice de estanqueidad | IP64 (con tapón de silicona) |
| Condiciones de almacenamiento | -20°C a 50°C (-4°F a 122°F) 0% a 95% de humedad relativa sin condensación |
| Vida útil | 2 años (vida útil de la batería) |
| Requisitos del sistema | PC con Windows y sistema operativo actual, Adobe Reader |
| Programación | Programable por el usuario con el software FlashLink Program Manager (incluido) |
| Requisitos de descarga | Conexión USB directa al PC (no se requiere software especial para descargar el registrador). |
| Modelo | |
|---|---|
| 40571 | Incluye Certificado de Conformidad del Fabricante |
| 40571-01 | Incluye Certificado de Calibración ISO 17025 de 2 años |
Modelo 40575 – Sensor externo de aluminio FlashLink ULT
- El sensor mide hasta -82°C
- Cable de 3 m (9.8 pies) de longitud
Modelo 40576 – Sonda roma externa FlashLink ULT
- La sonda mide hasta -82°C
- Cable de 1 m (3.3 pies) de longitud
Software FlashLink Program Manager 7.1.9
FlashLink Program Manager es un software fácil de usar y con muchas funciones para programar y descargar datos en los registradores de datos reutilizables USB y FlashLink Mini Multi-Uso. Se puede descargar desde el enlace a continuación. Se requiere un número de licencia para completar la instalación.
Para descargar FlashLink Program Manager, haga clic en el enlace de abajo para iniciar el formulario de descarga. Consulte el archivo de ayuda del software para la programación de la configuración del registrador de datos.
