FlashLink® Dry Ice -90°C USB PDF In-Transit Logger
Model: 40801
FEATURES
Ideal para almacenamiento y transporte con hielo seco. Es un registrador de temperatura compacto y de un solo uso para el transporte. Su software integrado crea automáticamente un informe en PDF y un archivo CSV. Las estadísticas del historial del viaje están disponibles en la pantalla LCD. La función patentada Shadow Log® garantiza los datos incluso si el operador no inicia la unidad. Conexión USB directa, sin necesidad de base, lector o adaptador. Cumple con las regulaciones de la IATA para mercancías peligrosas.
APPLICATIONS
Monitoreo y registro de envíos de vacunas, materiales biológicos, químicos o hielo seco.
Los registradores FlashLink® Dry Ice -90°C USB PDF son ideales para rastrear envíos farmacéuticos, como vacunas u otros materiales biológicos para la industria de las ciencias de la vida. Los registradores proporcionan un registro completo de las condiciones de temperatura durante el envío y la manipulación, ayudando a asegurar y verificar la calidad y seguridad de estos costosos productos.
El software integrado y el conector USB permiten una descarga rápida del historial del viaje, disponible en formatos de informe PDF y CSV. La recepción del historial de temperatura está garantizada con la función Shadow Log™ a prueba de fallos de DeltaTrak. Esta innovación patentada de vanguardia registra datos incluso si el operador no inicia la unidad.
Registrador de Temperatura en Tránsito FlashLink® Dry Ice -90°C USB PDF, Modelos 40800/40801
| Característica | Especificación |
|---|---|
| Rango de Medición | -130°F a 113°F (-90°C a 45°C) |
| Resolución de Temperatura | 0.1°F/°C |
| Precisión | ±2.7°F de -130°F a -4°F (±1.5°C de -90°C a -20°C) ±0.9°F de -4°F a 77°F (±0.5°C de -20°C a 25°C) ±2.7°F de 77°F a 113°F (±1.5°C de 25°C a 45°C) |
| Capacidad de Datos | 32,000 puntos de datos |
| Tiempo de Descarga de Datos | 5 segundos |
| Niveles de Alarma Programables de Fábrica | Límites alto/bajo en todo el rango de temperatura |
| Vida Operativa | 30 días con exposición continua a hielo seco a o por debajo de -80°C; 5 días con exposición continua a -90°C |
| Batería | Una ½ AA, 3.6 voltios |
| Dimensiones | 1.57 pulg x 3.67 pulg x 0.94 pulg (40 mm x 93.5 mm x 24 mm) |
| Carcasa | Plástico ABS |
| Peso | 1.9 oz (54 gramos) |
| Resistencia a Impactos | Resiste caídas de 3 pies (1 metro) a una superficie dura |
| Certificación | Calibración trazable a NIST, compatible con ROHS, compatible con BSS 7061, marca CE |
| Pantalla | LCD, Alarma LED roja |
| Condiciones de Almacenamiento | -4°F a 122°F (-20°C a 50°C) 0% a 95% de humedad relativa sin condensación |
| Estándares PDF | Cumple con ISO19005-1, PDF/A, 21 CFR Parte 11 |
| Requisitos del Sistema | PC con Windows y sistema operativo actual, Adobe Reader |
| Requisitos de Descarga | Conexión USB directa |
| Modelo | 40800 | 40801 |
|---|---|---|
| Escala de Temperatura | °F | °C |
| Frecuencia de Muestreo | 10 Minutos | 10 Minutos |
Packaging
The pillow style sleeve is designed to provide a cushion of air around the FlashLink® Dry Ice USB PDF Logger. This allows the unit to more closely reflect the temperatures that products experience during transport, by preventing direct contact between the logger and the dry ice.
The back of the sleeve contains shipper instructions in English and Spanish, and receiver instructions in English, Spanish, Chinese and Japanese. An image of the LCD identifies the icons that appear on the screen. Each end of the sleeve closes with two foldable flaps, securing the logger inside and making it easy to remove and download when a shipment arrives.
Descargue la hoja de especificaciones del registrador de datos en tránsito FlashLink Dry Ice -90°C USB PDF.
Descarga las Notas Técnicas del Registro de Sombras
Folleto: Monitores de Temperatura de Un Solo Uso para el Transporte y Manipulación de la Vacuna contra la COVID-19
Folleto: Monitores de Temperatura de Un Solo Uso para el Transporte y Manipulación de la Vacuna contra la COVID-19 (Español)

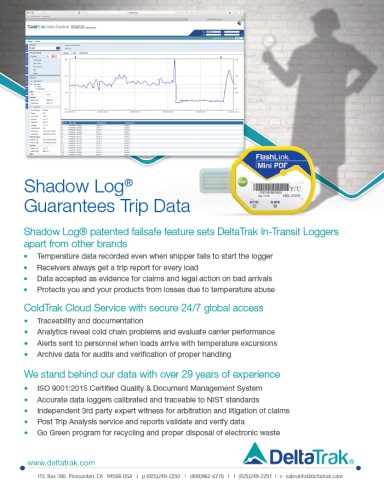

Descarga el folleto de Shadow Log
