Registrador de tránsito FlashLink® PDF Elite °F/°C
Model: 40051
FEATURES
- Single-use Temperature and Humidity Logger
- Large, easy to read LCD display
- Trip history statistics availaBLE on LCD
- Patented Shadow Log® feature guarantees data even if the shipper fails to start the logger
- User-programmaBLE options before activation include: Low/High Alarms, Logging Interval, Start Delay, and Temperature Scale.
- Built-in USB connector, no special reading devices needed
- Automatically creates secure PDF report and CSV file
- No software required to download data
- Recorded data automatically scales to graph
- Embedded Temperature Calibration Certificate availaBLE upon request
APPLICATIONS
Transport of Produce, Prepared Foods, Pharmaceuticals, Chemicals, Storage Units, Refrigerators
The FlashLink® PDF Elite In-Transit Logger is an ideal cold chain management solution for monitoring temperature sensitive products as they move through the supply chain. The device features a built-in USB connector, and onboard software which automatically creates PDF and CSV trip reports when the device is plugged into a PC. Onboard software is particularly important when products are shipped to remote locations. Receivers are provided quick and easy access to temperature reports immediately upon shipment arrival.
No cradles, reading devices or adapters are required for downloading trip data. The secure, encrypted PDF report can be emailed for sharing with other stakeholders and saved on a local hard drive for quality assurance, traceability, and Good Distribution Practices (GDP).
The PDF Elite includes a broad array of innovative and user-friendly features such as a large, easy-to-read LCD which displays trip history statistics for quick review; easy toggling between Fahrenheit and Celsius; 32,000 data points – two times the data offered by competitors; and high accuracy. The PDF Elite logger is also equipped with DeltaTrak’s patented Shadow Log® technology, which guarantees receiver access to trip data – even if a shipper forgets to start the unit.
An onboard configuration file allows shippers to customize logging intervals, delayed starts, and high/low alarm settings. However, a factory-configured PDF Elite logger is also availaBLE which includes custom logging parameters or an embedded calibration certificate. Both modifications can also be integrated into a single device.
FlashLink® PDF Elite In-Transit Temperature and Humidity Logger
| Feature | Specification |
|---|---|
| Measurement Range | -40°F to 140°F (-40°C to 60°C) |
| Temperature Resolution | 0.1°F/°C |
| Accuracy | ±0.9°F from -40°F to 140°F (±0.5°C from -40°C to 60°C) |
| Temperature Scale | °F and °C |
| Humidity Range | 0% to 100% RH |
| Humidity Accuracy | ±5% RH at 25°C |
| Relative Humidity Resolution | 0.1% RH |
| Data Capacity | 32,000 data points |
| Data Download Time | 5 seconds typical |
| Logging Interval | ConfiguraBLE minutes (4 minutes/ 85 days default) |
| Trip Duration | 85 Days |
| Start Delay | 30 Minutes |
| Low/High Alarms Settings | None – user programmaBLE option |
| GMT | GMT +0 |
| Battery | Coin Cell Lithium battery |
| Battery Shelf Life | 18 months |
| Dimensions | 3.9in x 1.7in x 0.5in (99.1mm x 43.2mm x 12.7mm) |
| Casing | ABS plastic |
| Weight | 1.28 oz (36.29 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Waterproof Rating | IP64 with silicone cap |
| Display | LCD, trip statistics, red LED alarm and high/low limit indicators |
| Storage Conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation |
| PDF Standards | 4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation |
| System Requirements | Windows PC with current operating system, Adobe Reader |
| Download Requirements | Direct USB connection |
| Certifications | CE Mark, Calibration traceaBLE to NIST, ROHS Compliant, BSS 7061 Compliant |

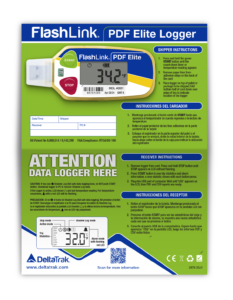

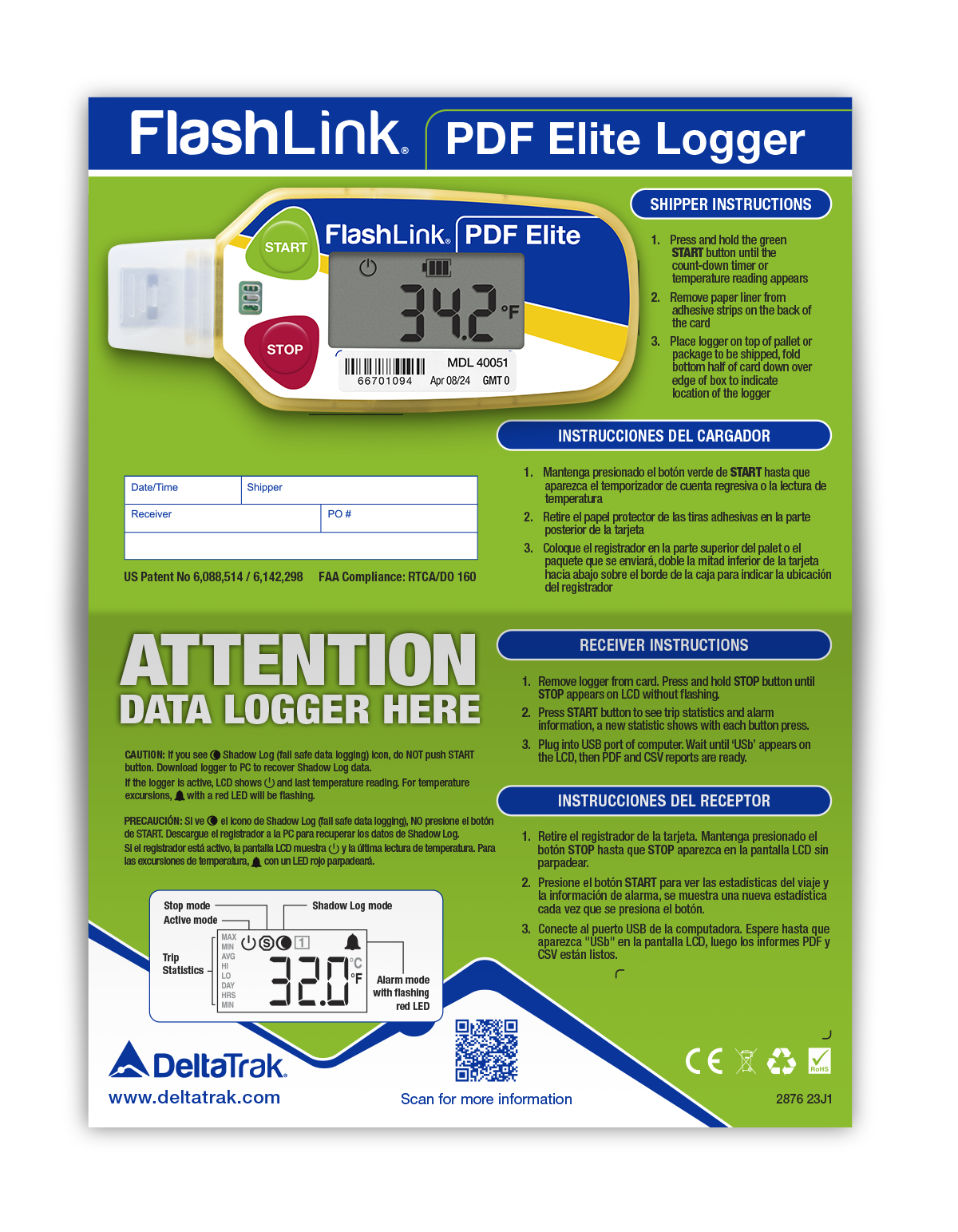

Packaging
Each FlashLink® Mini PDF In-Transit Logger is mounted on a bright green shipping card, making it easy to find when a load arrives. The card has an area for documenting shipping information and features a peel-away barcode label that can be attached to the bill of lading or other shipping documents, for traceability. It also provides shipper and receiver instructions in English and Spanish.
Users can scan the QR code to quickly access more information from a URL, including the User Guide and FAQs.

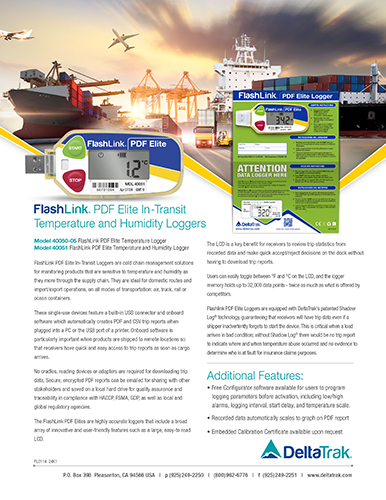

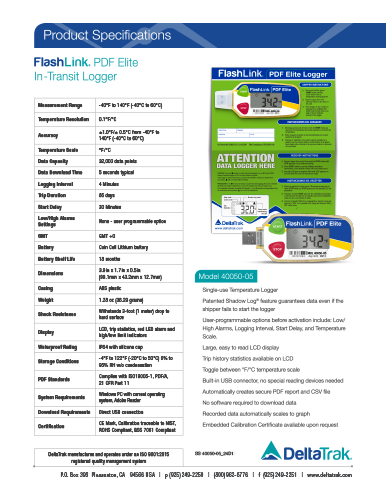

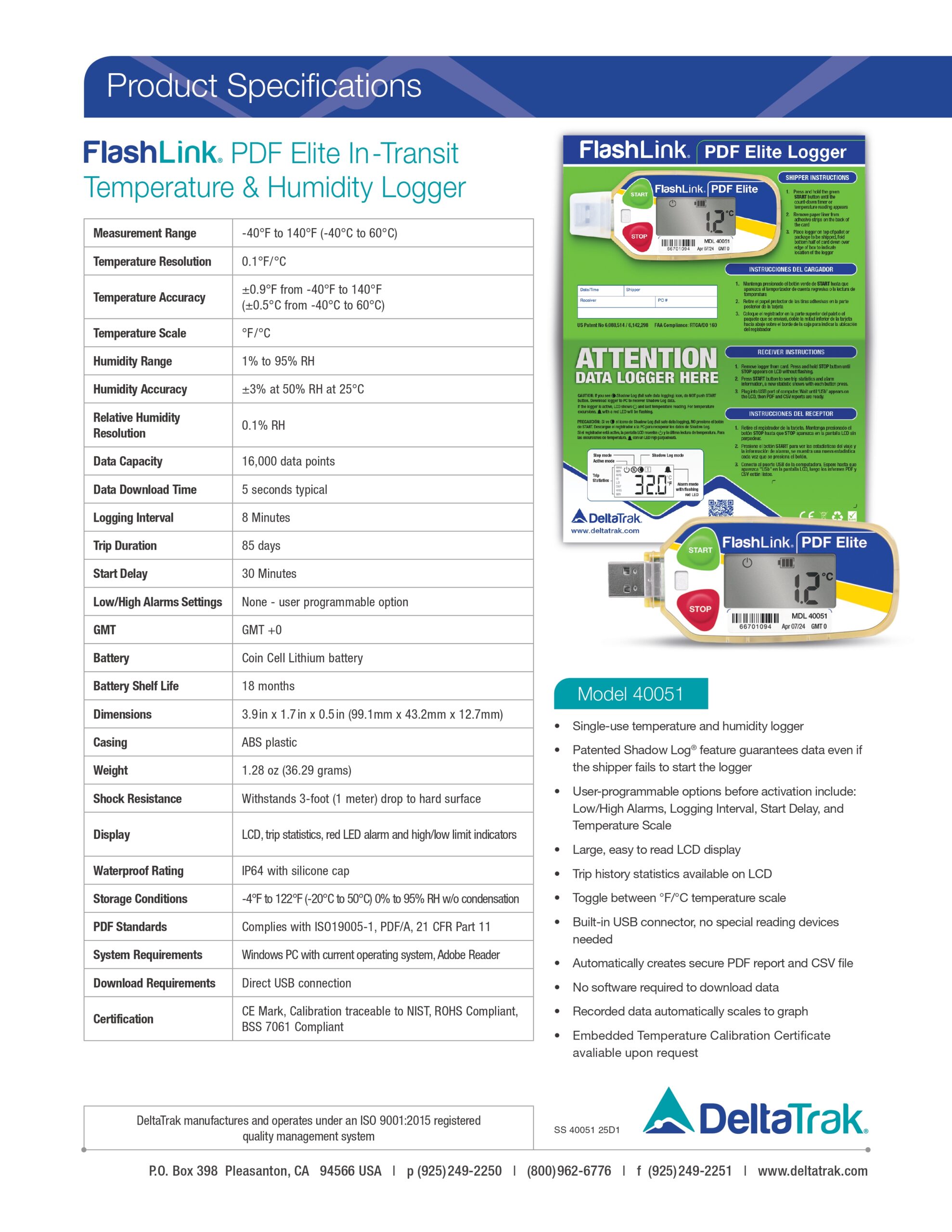

Download FlashLink PDF Elite In-Transit Logger Spec Sheet

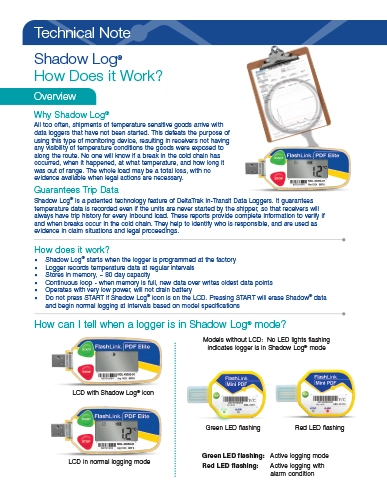

Download Shadow Log Technical Notes
Download Shadow Log Flyer
Download Spanish FlashLink PDF Elite In-Transit Logger Spec Sheet
