Temperature/Humidity/Dew Point Circular Chart Recorder
Model: 14013
FEATURES
- Modelo 14013 – Registrador 110V, Modelo 14014 – Registrador 220V
- Pantalla LCD de fácil lectura que muestra la temperatura y la humedad
- Alarma de funciones completas
- Batería de respaldo de 48 horas en caso de falla de energía
`
`
APPLICATIONS
Instalaciones de almacenamiento refrigerado, invernaderos, instalaciones de producción de animales vivos, salas de procesamiento, laboratorios.

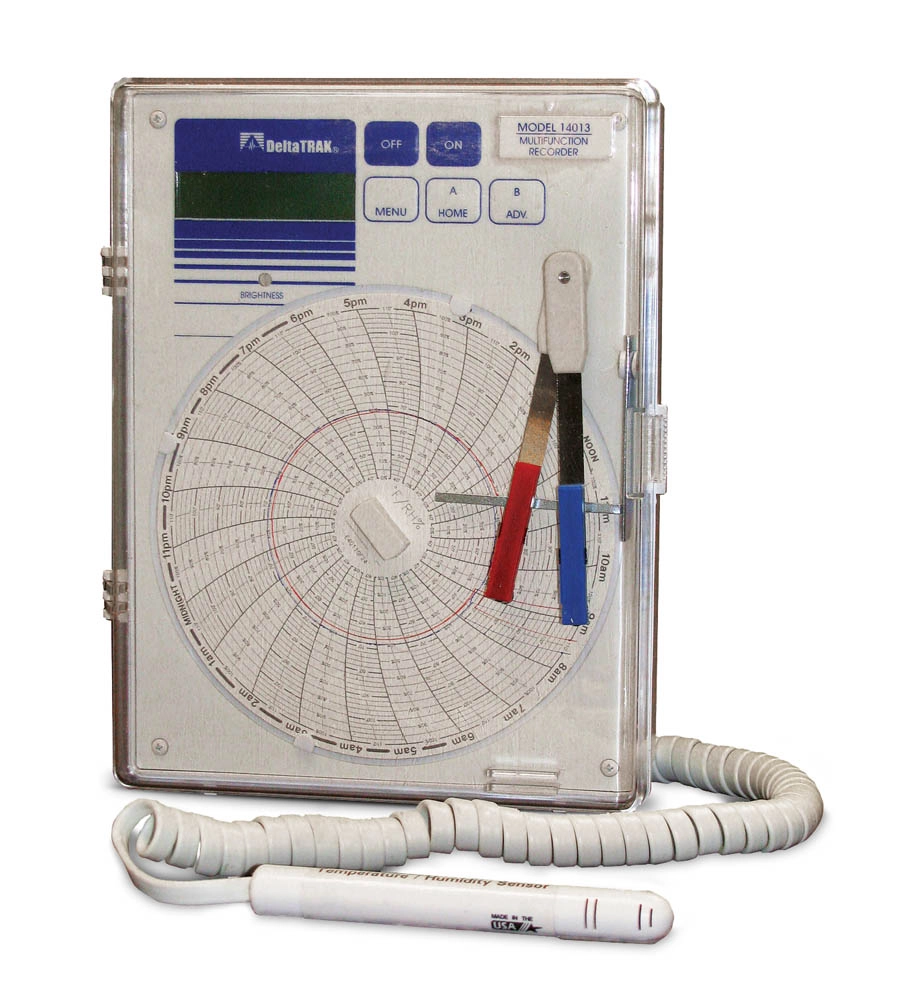

El registrador circular de temperatura, humedad y punto de rocío utiliza un bolígrafo rojo para registrar la temperatura y uno azul para la humedad, grabando permanentemente estas mediciones en un gráfico de papel de 165 mm (6 pulgadas) de diámetro. El registrador de temperatura se alimenta mediante un adaptador de corriente alterna de 110 V, 50/60 Hz para el modelo 14013 y un adaptador de 220 V CA para el modelo 14014. También se puede alimentar con cualquier fuente de 12 V CC, como la de un automóvil, embarcación u otra batería.
Una batería de respaldo de 48 horas proporciona energía y asegura el funcionamiento del registrador de temperatura durante cortes de energía temporales.
El registrador circular de temperatura, humedad y punto de rocío de DeltaTrak, modelo 14013 (110 V) y modelo 14014 (220 V), permite el monitoreo simultáneo de la temperatura y la humedad relativa. Este registrador está disponible con cuatro velocidades de gráfico diferentes: 12 horas, 24 horas, 7 días y 31 días. Los gráficos están disponibles en escalas °F o °C. El rango de registro del registrador de temperatura es de -30 °C ~ 50 °C (-20 °F ~ 120 °F) y 10 % – 90 % de HR. El registrador circular también calcula el punto de rocío. Cuenta con una pantalla LCD fácil de leer y una alarma audible de funciones completas para excursiones de temperatura.
Registrador gráfico de Modelo 14013-14014 con sensor de temperatura/humedad/punto de rocío
| CARACTERÍSTICAS | ESPECIFICACIONES |
|---|---|
| Rango de temperatura ambiente de operación | +32°F a +120°F (0 a +50°C) |
| Temperatura de almacenamiento | 0°F a +120°F (-18°C a +50°C) |
| Alimentación principal | Modelo 14013 – 110 VCA, 50/60 Hz. Adaptador de enchufe. Modelo 14014 – 220-240 VCA, 50 Hz. |
| Alimentación auxiliar opcional | 8 baterías alcalinas AA (Aprox. 48 horas) |
| Precisión de temperatura | +/- 2°F (+/- 1°C) |
| Rango de humedad relativa | 10-90% |
| Precisión de humedad relativa | +/- 3% del 20% al 80% a 77.0°F (25°C) |
| Rango de punto de rocío | +32°F a +130°F (0°C a +50°C) |
| Sensor | Temperatura/humedad combinada con cable de 6’ (longitud de cable extendida disponible) |
| Gráfico | Gráfico circular de 6” |
| Velocidades de rotación del gráfico | 31 días, 7 días, 24 horas, 12 horas, 6 horas, 3 horas o 1.5 horas |
| Modo de rotación del gráfico | Seleccionable por el usuario — Giro único o continuo |
| Precisión de la velocidad del gráfico | +/- 1 % |
| Pantalla | LCD retroiluminada alfanumérica, 16 caracteres, 2 líneas |
| Rango de alarma de temperatura | -20°F a +120°F (-30°C a +50°C) |
| Rango de retraso de alarma | Seleccionable por el usuario: Sin retraso, 10 min., 30 min., 1 hora o 2 horas |
| Conexión remota de alarma | Contactos normalmente abiertos 48 VCA/CC, 0.1 Amp., contactos secos |
| Montaje | Vertical u horizontal; Independiente o de pared |
| Dimensiones | 9.25” x 7.25” x 2.75” |
| Peso | 2.5 lb. |
| Consumo de energía | 3.5 vatios máximo |
