Temperature/Humidity/Dew Point Circular Chart Recorder
Model: 14014
FEATURES
- Modelo 14013 – Registrador 110V, Modelo 14014 – Registrador 220V
- Pantalla LCD de fácil lectura que muestra la temperatura y la humedad
- Alarma de funciones completas
- Batería de respaldo de 48 horas en caso de falla de energía
`
`
APPLICATIONS
Instalaciones de almacenamiento refrigerado, invernaderos, instalaciones de producción de animales vivos, salas de procesamiento, laboratorios.

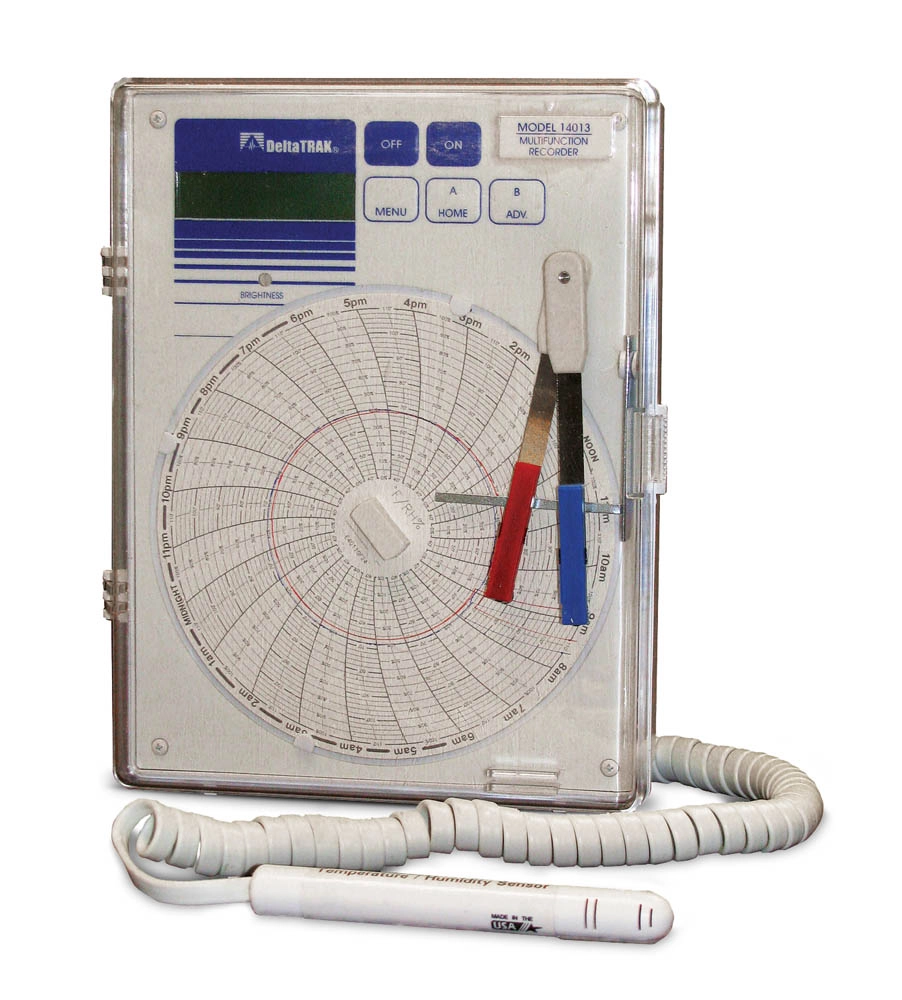

El registrador circular de temperatura/humedad/punto de rocío utiliza una pluma roja para registrar la temperatura y una pluma azul para registrar la humedad, grabando permanentemente estas mediciones en un gráfico de papel de 6 pulgadas (165 mm) de diámetro. El registrador de temperatura se alimenta mediante un adaptador de corriente de 110 V CA, 50/60 Hz para el modelo 14013 y un adaptador de 220 V CA para el modelo 14014. Se puede suministrar alimentación externa desde cualquier fuente de 12 V CC, como un vehículo, embarcación u otra batería.
La batería de respaldo de 48 horas proporciona energía y asegura el funcionamiento del registrador de temperatura durante la pérdida temporal de energía.
El registrador circular de temperatura/humedad/punto de rocío de DeltaTrak, modelo 14013 (110 V) y modelo 14014 (220 V), proporciona un monitoreo simultáneo de la temperatura y la humedad relativa. Este registrador está disponible en cuatro velocidades de gráfico diferentes: 12 horas, 24 horas, 7 días y 31 días. Los gráficos están disponibles en escalas °F o °C. El rango de registro del registrador de temperatura es de -20°F ~ 120°F (-30°C ~ 50°C) y 10%-90% de HR. El registrador circular también calculará el punto de rocío. Cuenta con una pantalla LCD fácil de leer y una alarma audible de funciones completas para las excursiones de temperatura.
Registrador gráfico de modelo 14013-14014 con sensor de temperatura/humedad/punto de rocío
| Característica | Especificación |
|---|---|
| Rango de temperatura ambiente de funcionamiento | +32°F a +120°F (0 a +50°C) |
| Temperatura de almacenamiento | 0°F a +120°F (-18°C a +50°C) |
| Alimentación principal | Modelo 14013 – 110 VCA, 50/60 Hz. Adaptador de enchufe. Modelo 14014 – 220-240 VCA, 50 Hz. |
| Alimentación auxiliar opcional | 8 pilas alcalinas AA (Aprox. 48 horas) |
| Precisión de temperatura | +/- 2°F (+/- 1°C) |
| Rango de humedad relativa | 10-90% |
| Precisión de humedad relativa | +/- 3% del 20% al 80% a 77.0°F (25°C) |
| Rango de punto de rocío | +32°F a +130°F (0°C a +50°C) |
| Sensor | Temperatura/humedad combinados con cable de 6’ (longitud de cable extendida disponible) |
| Gráfico | Gráfico circular de 6” |
| Velocidades de rotación del gráfico | 31 días, 7 días, 24 horas, 12 horas, 6 horas, 3 horas o 1.5 horas |
| Modo de rotación del gráfico | Seleccionable por el usuario — Una sola vuelta o continua |
| Precisión de la velocidad del gráfico | +/- 1% |
| Pantalla | LCD alfanumérica retroiluminada, 16 caracteres, 2 líneas |
| Rango de alarma de temperatura | -20°F a +120°F (-30°C a +50°C) |
| Rango de retardo de alarma | Seleccionable por el usuario: Sin retardo, 10 min., 30 min., 1 hora o 2 horas |
| Conexión de alarma remota | Contactos normalmente abiertos 48 VCA/CC, 0.1 Amp., contactos secos |
| Montaje | Vertical u horizontal; Independiente o de pared |
| Dimensiones | 9.25” x 7.25” x 2.75” |
| Peso | 2.5 lb. |
| Consumo de energía | 3.5 vatios máximo |
